Circles

About Circle:

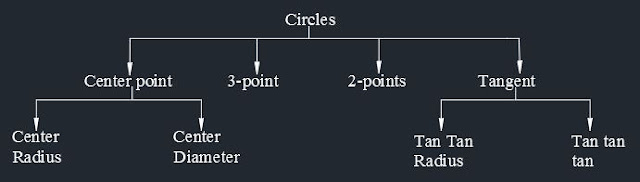

            To create circles we have various combinations depending upon our work. Following graph shows the methods in which circles are used.


Above graph shows all the methos by which circles can be made. By default center point radius method is used in autocad.

Related Concepts:
  • About arcs
  • About Donuts.
  • About Ellipse.
  • About splines.
  • About helixes.
Related Task:
Related Reference:
  • Commands for curved geometric objects.
